Crowcon Gasmaster

Crowcon Gasmaster

The Crowcon Gasmaster is a compact, versatile, and powerful gas detection control panel that combines ease of use with a wide range of input and output capabilities.

Gasmaster provides all the information you need about your gas and fire detectors in a single glance. The wide multi-lingual display shows gas levels from all detectors at the same time and allows system customization and testing through front-panel buttons. Using a variety of outputs, the Gasmaster gas detector control panel can run “stand-alone” or interact with any alarm devices and control systems.

Features

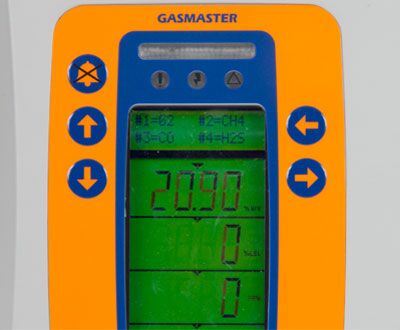

Large Display

  • All gas levels are displayed simultaneously – enables full systems status check at a glance
  • Alarm messages can be customized to indicate the name or location of any detector in alarm
  • The LCD can be set to display in many languages



User friendly

  • The menu system is intuitive and easy to use – enables configuration changes to be made easily
  • All functions, from day-to-day operation to re-calibration, can be carried out from the front panel – routine testing can be performed rapidly
  • Event log feature – enables system fault and alarm history to be viewed



Versatile Input and Output features

  • Provides analogue, relay and Modbus outputs – facilitating communication around the site
  • Flexibility – Gasmaster can monitor up to four detectors in virtually any combination of gas detectors, fire zones or Environmental Sampling Unit. The software enables re-configuration and event log upload in an instant
  • Two levels of independent alarm per channel – can be configured to suit site requirements
  • Remote inhibit and re-set facilities – enables control from any point on your site
  • Compatible with a 4-20mA or mV pellistor-type gas detector – mV pellistor detectors reduce system purchase and maintenance costs



Specifications



Size 288 x 278 x 110mm (11.3 x 10.9 x 4.3 inches)
Weight 4.5kg (10lbs)
Power 100-240Vac 50-60Hz or
20-30Vdc, 60W max
Battery back-up 1.2Ah batteries fitted internally
Operating temperature -10°C to +50°C (14°F to +122°F)
Enclosure material Back-box: cast aluminium
Front cover: ABS (flame retardant)
Ingress protection IP65
Panel indication LCD back-lit display shows gas level (in ppb, ppm, % volume or % LEL units), and scrolling alpha-numeric status indication.
LED’s for Alarm, Fault, Power and Warning. Integral 85dB sounder (at 10cm)
Approvals EMC: EN50270, EN60945, FCC: CFR 47 Part 15; ICES – 003
ATEX: May be used in a non-hazardous area as part of Intrinsically Safe System conforming to EN60079-25 Baseefa 05Y0090/1
Functional safety Validated to IEC61508
SIL2
